Dashboard mistrust
People can see the trend, but no one agrees whether the tag, timestamp, or unit is trustworthy.
Operating problem
Machine data is often available but not trusted. PLC tags, sensor values, historian exports, and dashboard fields lose meaning when naming, units, timestamp source, state context, and ownership are not designed together.
How to read this blueprint The architecture examples here are reference patterns for designing your own machine-data path. Treat them as a starting topology to adapt — naming conventions, context fields, and ownership boundaries should map to your plant's systems, not be copied verbatim.
Symptoms and decision signals
What usually tells the team the problem is real
Protocol confusion
OPC UA, MQTT, historian export, API, or vendor gateway options are discussed before the source and owner are clear.
Weak naming
Tags do not carry machine, unit, state, quality, or operating context needed for long-term use.
AI before readiness
Teams discuss models while the data contract and human review gate are still undefined.
Why common approaches fail
Useful technology fails when the operating decision is undefined

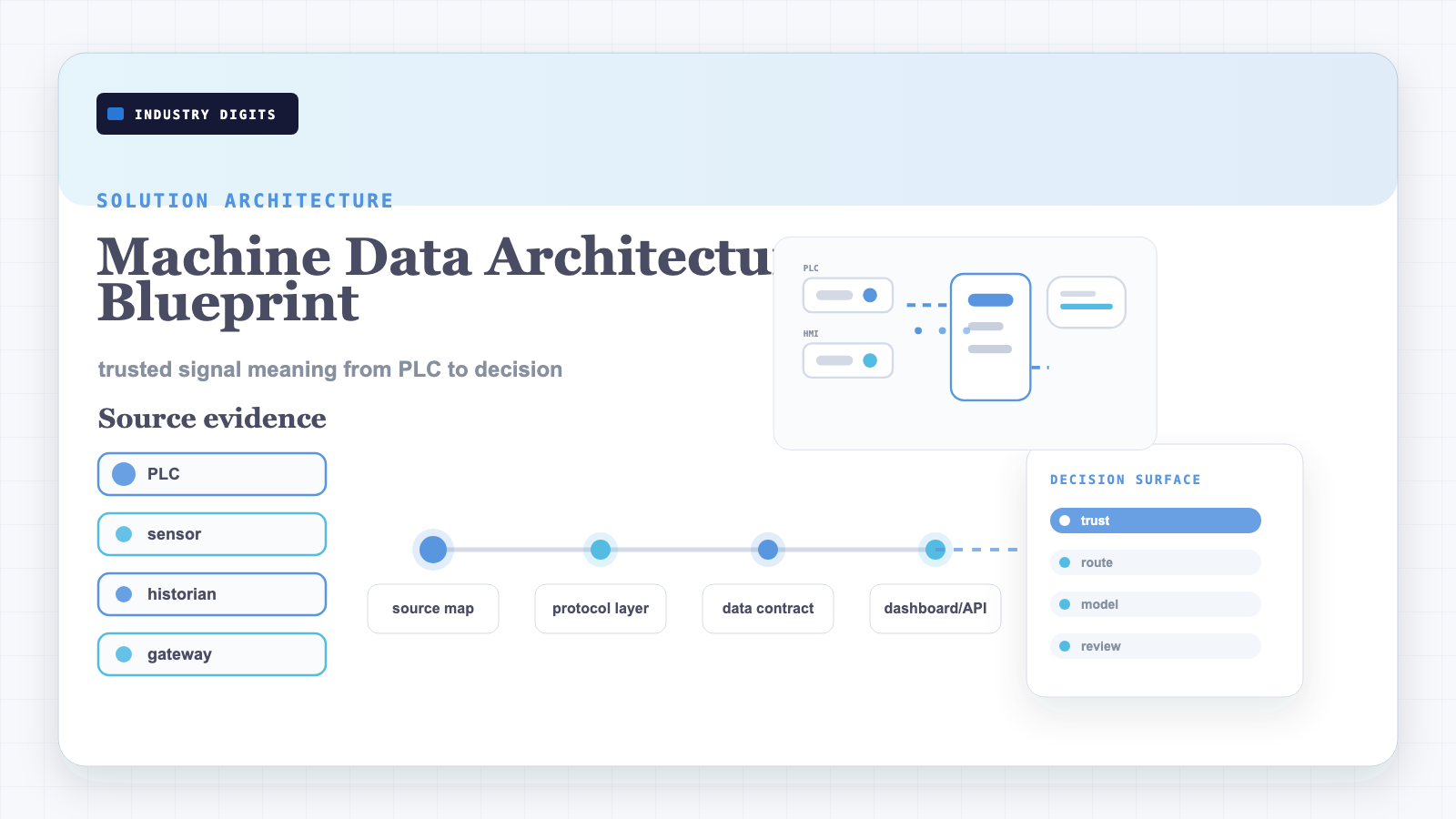

Solution architecture
What has to connect before scaling

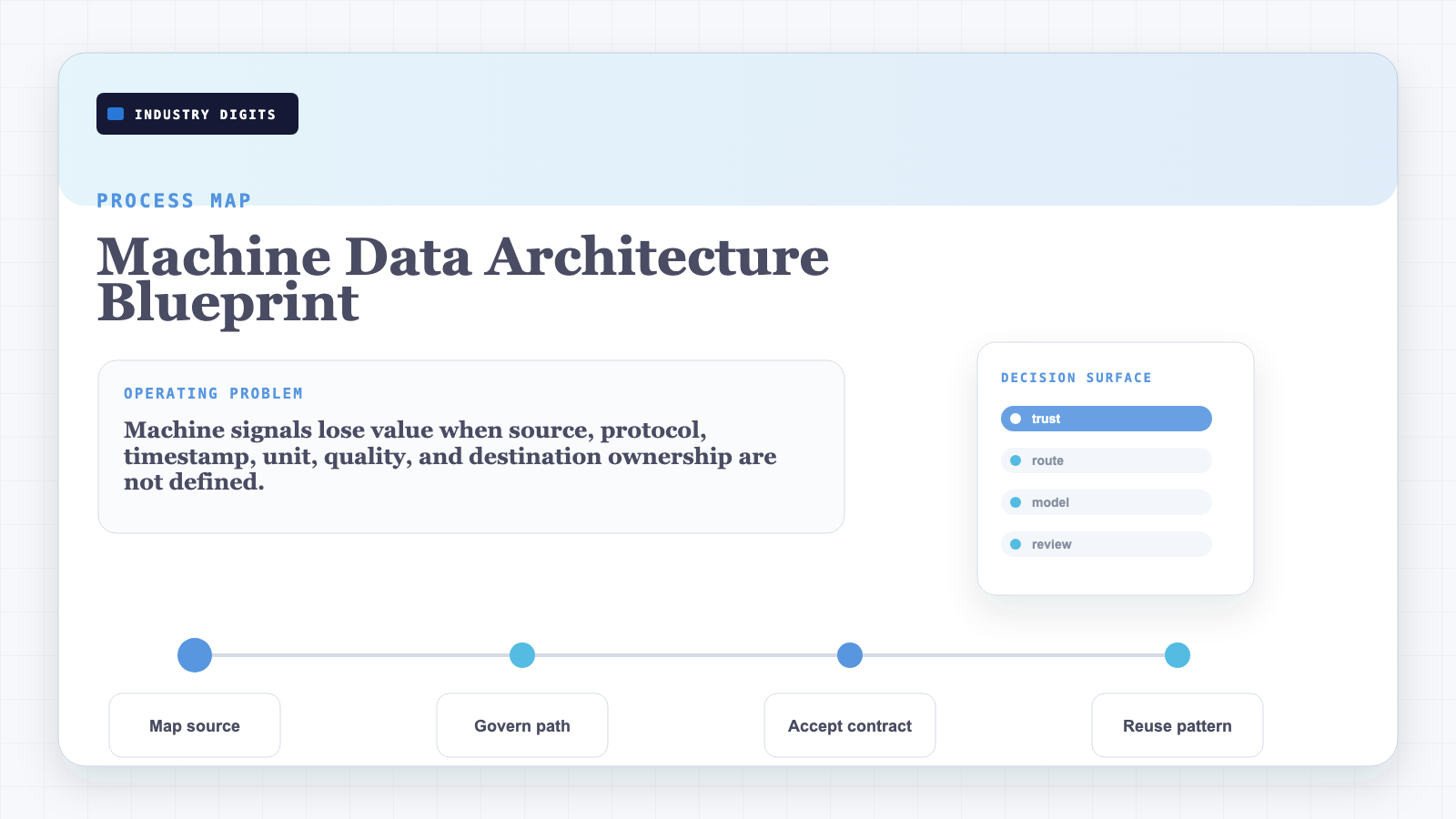

30 / 60 / 90 day path
A release path that earns trust before scale
These stages are planning ranges. The real cadence depends on plant access, signal quality, risk, and ownership.
Map one data path
Pick one machine, line, utility, or asset group and document sources, protocols, owners, and decision target.
Build and accept the data contract
Connect a small set of signals, verify unit/timestamp/state quality, and agree acceptance criteria with operations.
Standardize the reusable pattern
Convert the proof path into naming, security, dashboard, and API conventions for the next line or asset group.
Required signals
The data contract is the practical proof surface.
Each signal needs ownership, unit, context, quality, and review logic. Without that contract, dashboards and alerts become fragile.

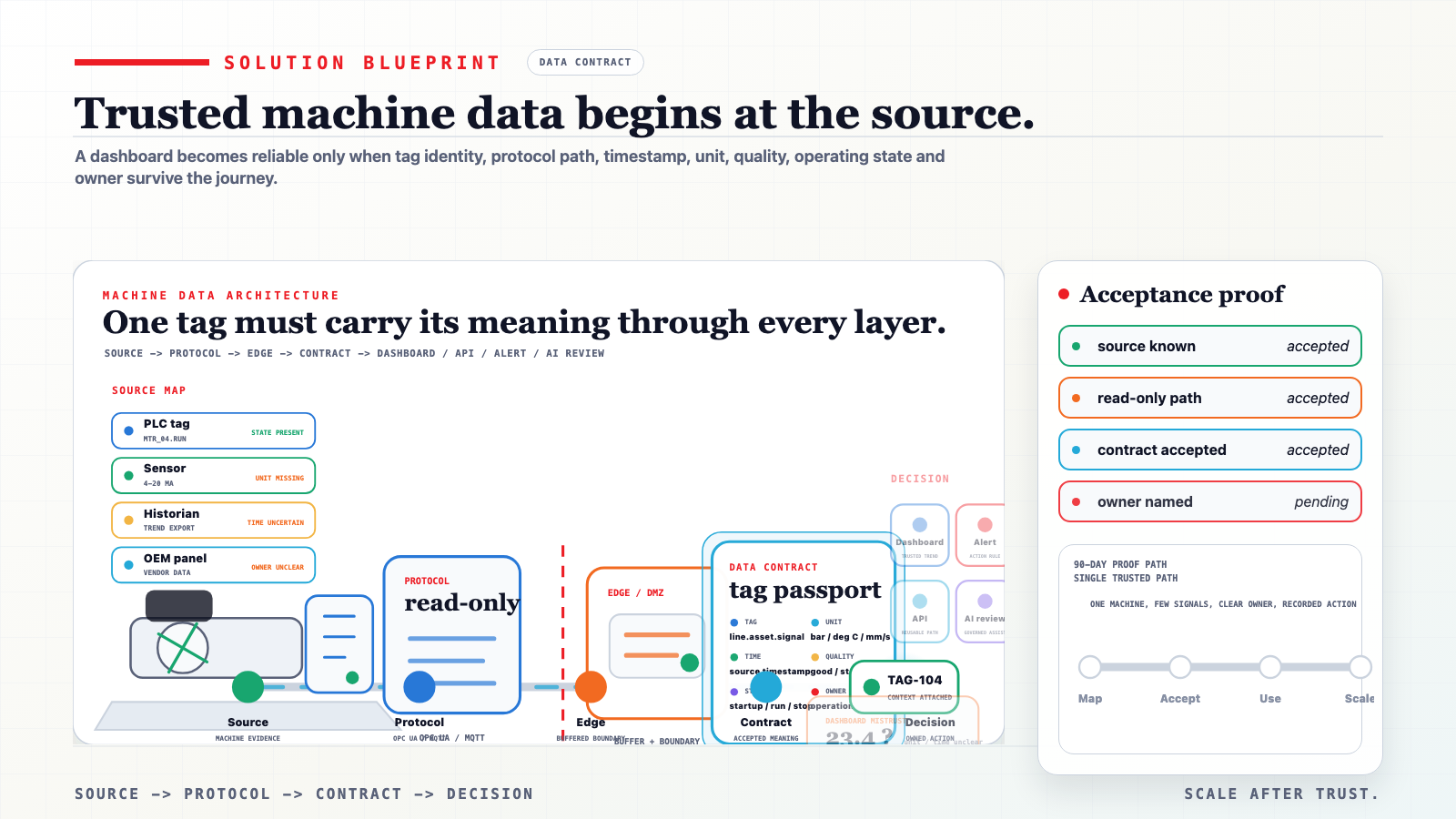

Explainer video brief
Machine Data Architecture Blueprint
Explain how trusted plant data depends on source mapping, protocol choices, data contracts, and decision surfaces.
0-6s Source reality
Useful architecture starts at the source.
6-16s Protocol path
Connectivity has to respect OT context.
16-26s Data contract
Context makes the signal useful.
26-36s Decision surface
Scale only after one trusted path works.
